Location
Engineering 1, Rm 124
Description

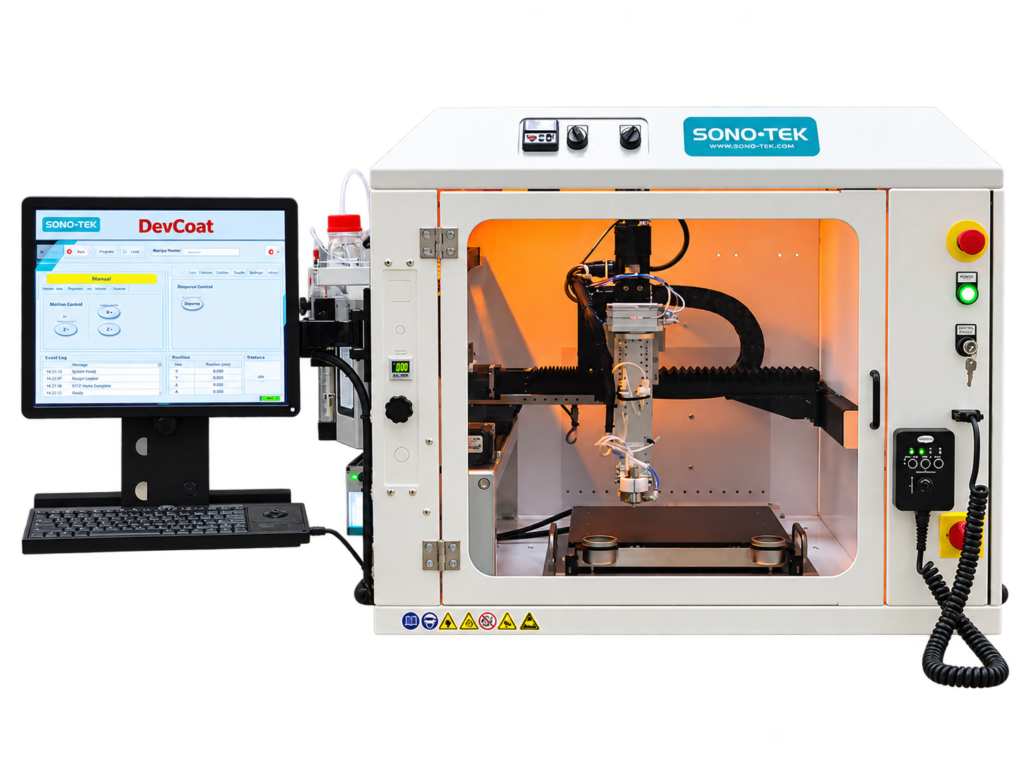

The Sono-Tek DevCoat Spray Coating System is a compact, benchtop ultrasonic spray deposition platform designed for precise, highly uniform thin-film coatings. Featuring a fully enclosed desktop footprint with integrated yellow lighting for photolithography compatibility, the system utilizes advanced ultrasonic atomization technology to produce soft, low-velocity sprays with minimal overspray. Its programmable XY gantry and automated syringe dispense system enable repeatable deposition of photoresists, functional polymers, and precursor solutions across diverse substrate geometries up to 300 x 300 mm.
Configuration/Specifications
– System Configuration: Desktop enclosed benchtop system with integrated yellow enclosure lighting
– Atomization Technology: Sono-Tek ultrasonic atomizing nozzle powered by an ECHO ultrasonic generator
– Liquid Delivery: Integrated precision syringe pump with syringe kit and automated liquid valve control
– Control Interface: Dedicated PC controller with user interface for programmable motion profiles and dispense rates
Substrate size
Substrate Area / Travel: 300 x 300 mm XY coating area on automated gantry platform
Make
Sono-Tek
Model
DevCoat
