Location
MPF Rm 443
Description

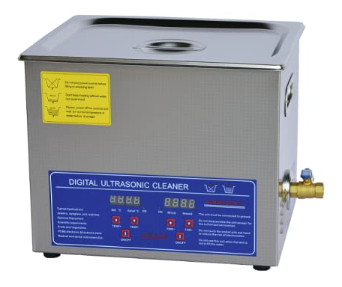

The JPS-40A sonicator functions as an ultrasonic cleaner. It utilizes ultrasonic waves at a frequency of 40kHz, which are generated by transducers, to create microscopic cavitation bubbles in a liquid. These bubbles rapidly form and collapse, producing a powerful cleaning action that dislodges dirt, grime, oil, and other contaminants from the surfaces and crevices of items placed in the cleaning tank
Configuration/Specifications
Capacity: 10L
Ultrasonic: 40KHz, 240W
Heater: 240W
Time setting: 0-30 minutes digital timer
Temperature setting: 20-80℃ digital thermostat
Material: the inner container and the outer shell are made of high-quality stainless steel
Substrate size
Inner tank dimensions: 300mm (L) x 240mm (W) x 150mm (H)
Standard Operating Procedure
Make
Ultrasonic Cleaner
Model
JPS-40A
Rate
MPF Facility Use
