Location
Physical Sciences Building, Rm 440
Description

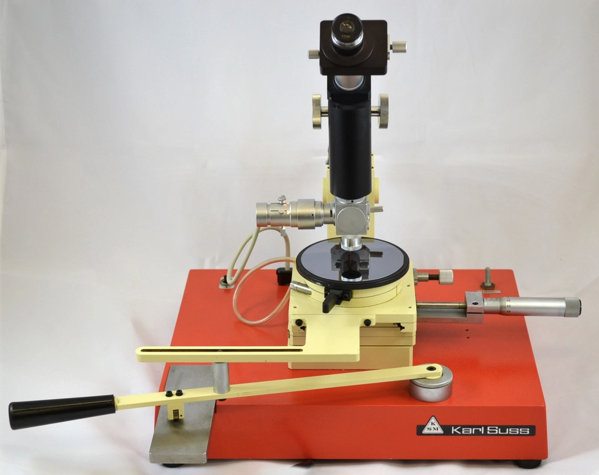

The Karl Suss HR-100 is a precision manual diamond scribing tool used for cleaving and dicing semiconductor wafers, substrates, and other materials. It allows for controlled, repeatable scribing of fragile materials prior to breaking, ensuring clean, straight edges for sample preparation.
Configuration/Specifications
Operation Type: Manual scribing with diamond-tipped tool
Stage Movement: X-Y adjustable sample platform with fine micrometer controls
Scribing Angle: Adjustable stage rotation for precise scribe alignment
Substrate Types: Suitable for silicon, glass, III-V materials, ceramics, and other brittle substrates
Magnification: Integrated microscope for accurate alignment and scribing control
Substrate size
Up to 4″ substrates
Standard Operating Procedure
Make
Karl Suss
Model
HR-100
Rate
MPF Facility Use
